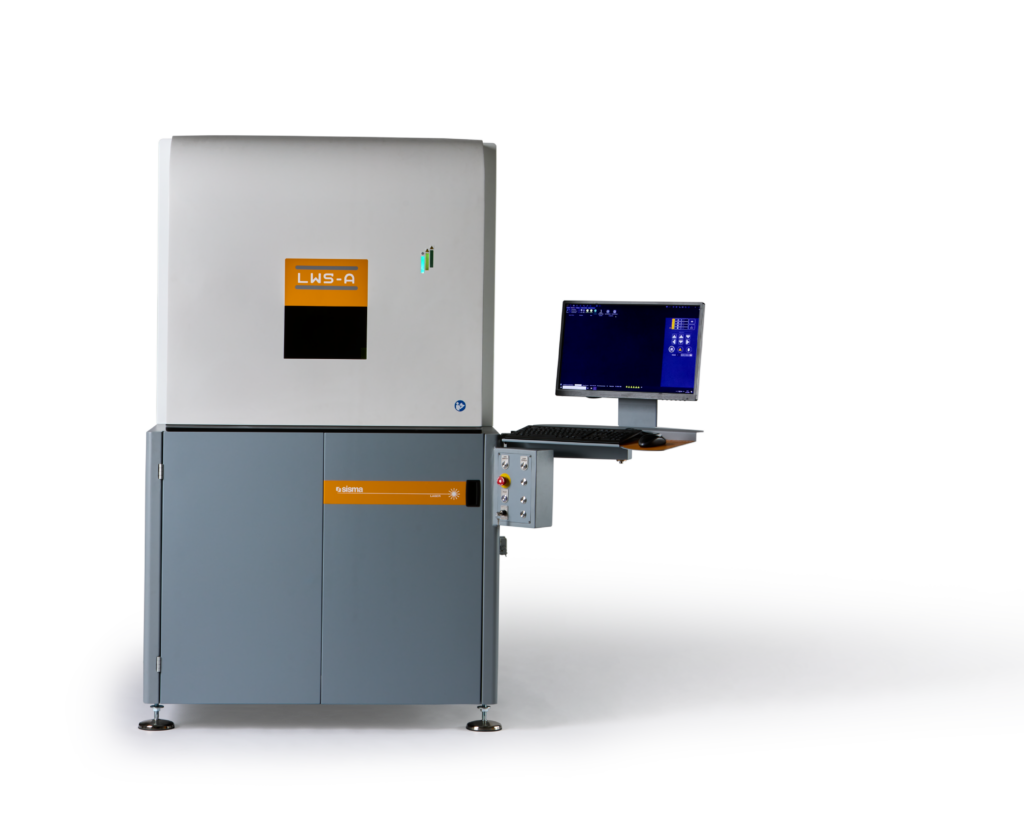

LWS Laser Marker Series

Laser Marking for Large and Heavy Components

The SISMA LWS is a professional laser marking and engraving workstation designed for large, heavy and complex workpieces. With its open gantry design, motorised axis options and advanced vision technology, it delivers precise, repeatable laser marking for demanding industrial applications.
Get a Quote

Laser Marking for Large and Heavy Components

High-Performance Laser Marking

Designed for industrial production, the LWS performs high-quality laser marking, deep engraving, traceability marking and component identification with exceptional repeatability. Optional technologies including the Coaxial Vision System (CVS), Pattern Matching software and rotary axis provide enhanced automation, positioning accuracy and production efficiency, making the LWS an ideal solution for modern manufacturing environments.
go to product Specification

Large Workpieces

Designed to mark and engrave large, heavy or difficult-to-move components with ease.

Precision Positioning

Optional CVS vision system delivers accurate alignment and repeatable laser marking.

Flexible Automation

Multiple machine configurations and motorised axes adapt to changing production requirements.

Key Features

The SISMA LWS offers a highly adaptable platform for precision laser marking, deep engraving and traceability applications, combining industrial durability with advanced automation features.
  • Large three-sided access for oversized and heavy workpieces.
  • Compatible with CVS vision, Pattern Matching and rotary axis accessories for automated, high-precision processing.

Spacious work area for heavy industrial parts and tooling

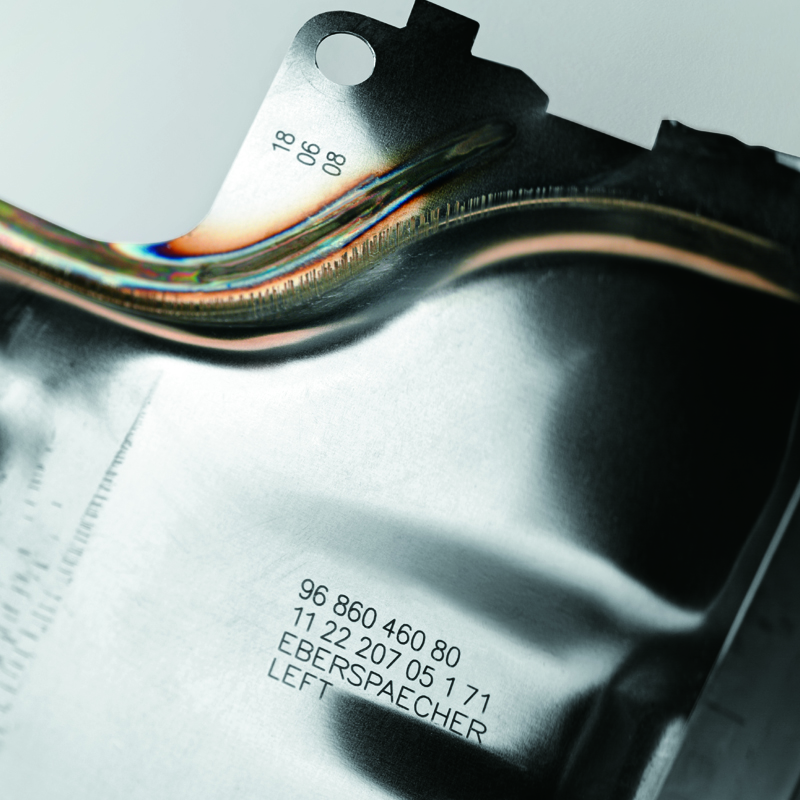

Sisma LWS Application Marking

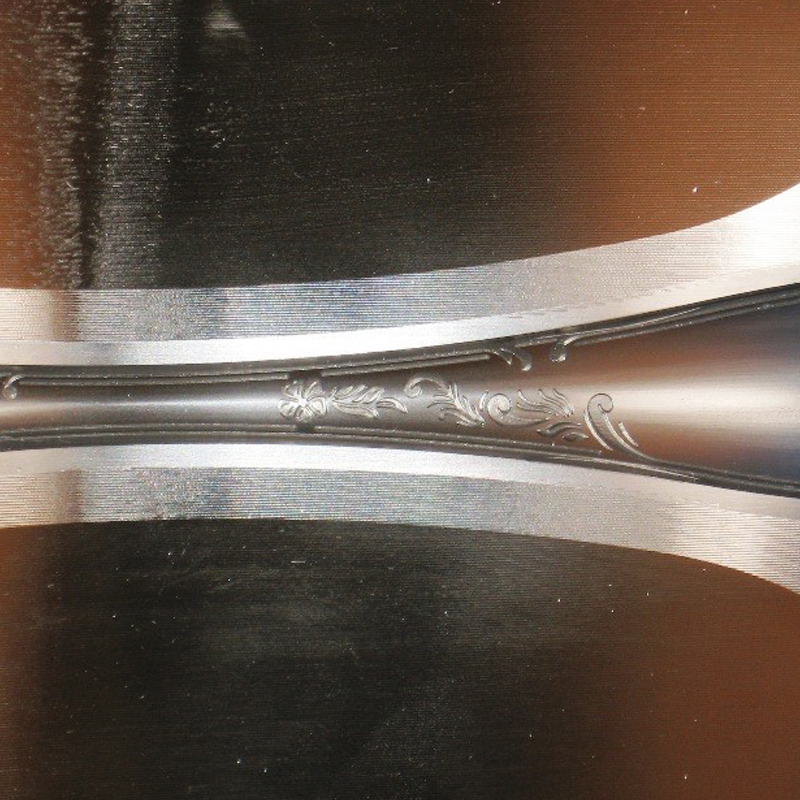

big_mold-Sisma LWS Application
piano_cottura-5Sisma LWS Application

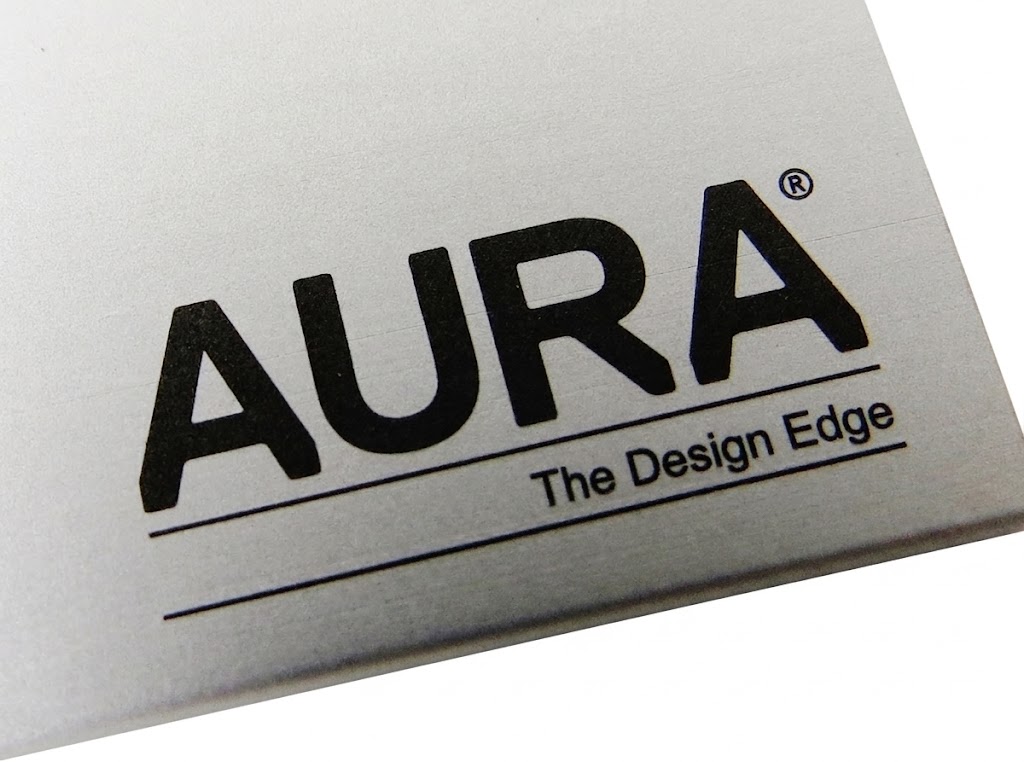

Black marking on anodised aluminium plate

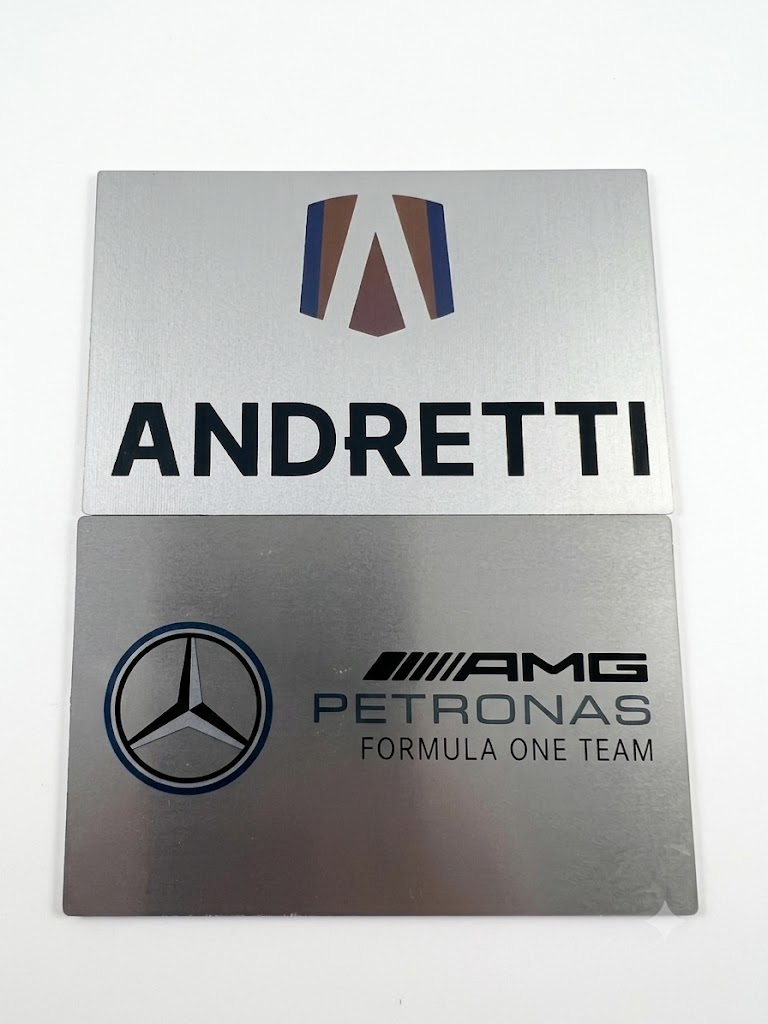

Colour marking for Stainless steel for F1 teams

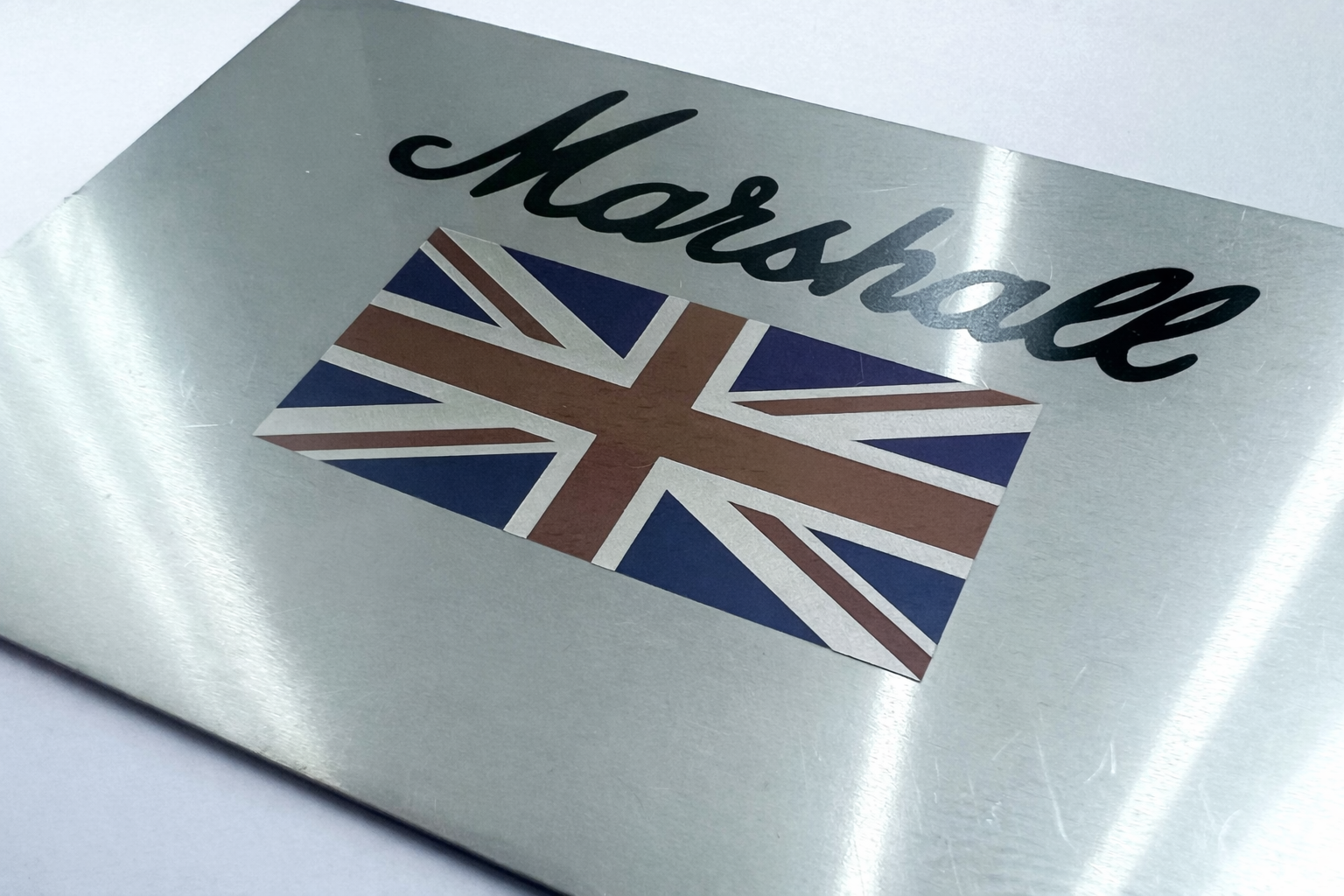

Marshall colour marking stainless

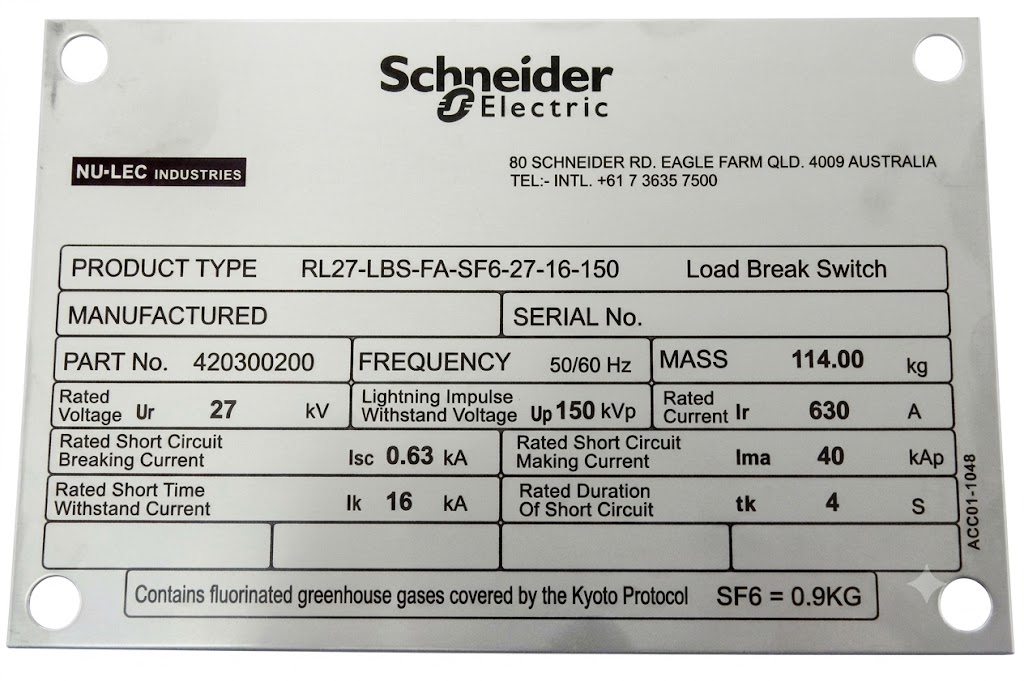

Black annealing on stainless steel electrical sign plate
Tecnical data LWS-M LWS-M Plus LWS-A
X axis stroke 480 mm (550 mm cl. IV) – manual 480 mm, motorized – motorizzato 520mm, motorized – motorizzato
Y axis stroke 375 mm, manual 320 mm, manual – manuale 400 mm, motorized – motorizzato
Z axis stroke 410 mm, motorized 410 mm, motorized – motorizzato 500mm, motorized – motorizzato
Working plane Fixed – fisso (mobile opt.) Manual – manuale Mobile
Available laser sources 20 W – 30 W – 50 W 20 W – 30 W – 50 W 20 W – 30 W – 50 W
Power supply 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW 230 V ± 15%, 50/60 Hz, 1 ph – 1 kW
Dimensions (WxDxH) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta) 1400 mm (machine) / 1964 mm (macchina + console) x 1414 mm (without console – senza console) x 2002 mm (closed door – porta chiusa) x 2585 (open door – porta aperta)
Weight 500 kg 500 kg 500 kg
Rotating spindle, with numerous types of vices. High-precision stepper spindle. Coaxial Vision System (CVS). The viewpoint of the camera coincides with the optical path of the laser beam and allows the work area to be viewed directly in the programming software, greatly facilitating the construction of the machine program. Advantages: – High precision and repeatability of centering; – Possibility of eliminating jigs or fixtures; – Possibility of laser rework on the same part to achieve the required depth or finish. Pattern Matching (PM)is a software feature added to CVS (optional) that enables automatic recognition of workpieces on the table and consequently accurate and repeatable positioning and execution of machining operations (marking, engraving, cutting, etc.). FILL-IT software for generating filler graphics for aesthetic effects. It is capable of reproducing effects such as perlage, sunburst, côte de genève, brushed, sandblasted and with the possibility of customized effects. Double red pointer. Modular and 2D-3D laser engraving and texture “Easy mold” solution is available. Plate vise. Fume suction unit.

The SISMA LWS is designed for industrial laser marking, deep engraving and permanent part identification on large or heavy metal components. Its flexible workstation design makes it ideal for manufacturers producing machinery, tooling, moulds, fabricated parts and precision-engineered components where accuracy and repeatability are essential.

Suitable for marking serial numbers, Data Matrix and QR codes, product branding, logos, traceability information and deep engraved features, the LWS supports efficient production workflows while maintaining exceptional marking quality. Optional CVS vision technology, Pattern Matching software and rotary axis accessories enable automated positioning and reliable processing of complex or cylindrical components, making the system an excellent solution for both single-piece and batch manufacturing.

You ask, we answer

Yes. Unlike compact desktop laser markers, the SISMA LWS is specifically designed to accommodate large, heavy and complex components. Its spacious three-sided working area and optional removable or lowering worktable make loading oversized parts easier while maintaining precise laser positioning.
The SISMA LWS is used across a range of industries including automotive, aerospace, engineering, toolmaking, medical device manufacturing, electronics and precision metal fabrication. It is particularly suited to manufacturers requiring permanent, high-quality identification and traceability marking on metal components.
The SISMA LWS can be equipped with advanced technologies such as the Coaxial Vision System (CVS), Pattern Matching software and optional motorised X, Y and Z axes. These features improve positioning accuracy, reduce setup time and ensure consistent marking quality, even on complex or irregularly shaped parts.
