UP19K-15S-H5-D0

Delivery 3-6 weeks when out of stock.

Overview

The Gentec-EO UP19K-15S-H5-D0 is a thermopile-based thermal detector designed for precise laser power measurement, with a maximum power handling capability of up to 15 W. This model is part of Gentec-EO's modular UP series, which is recognized for its accuracy, robustness, and adaptability in a range of laboratory and industrial environments.

Key Features

• Power Measurement Capability: Accurately measures laser power up to 15 W.
• Measurement Modes: Provides both power and single-shot energy measurement (up to 15 J per pulse).
• Modular Cooling: Features a modular concept allowing the user to increase the power capability of the detector using five different cooling modules, enhancing flexibility for various applications.
• Slim Design: The 15S model is notably compact, with a thickness of only 20.6 mm, making it suitable for setups where space is at a premium.
• Calibration: Supplied with all calibration data, ensuring traceable and reliable measurements.

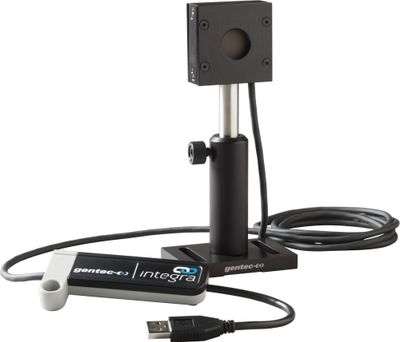

• Mounting Options: Equipped with two 1/4-20 threaded holes for stand mounting (stand sold separately), facilitating easy integration into experimental setups.

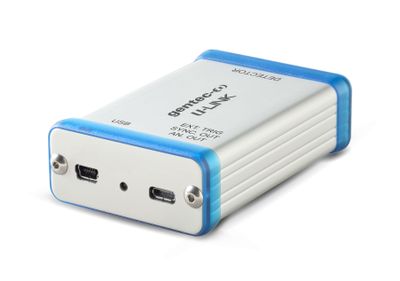

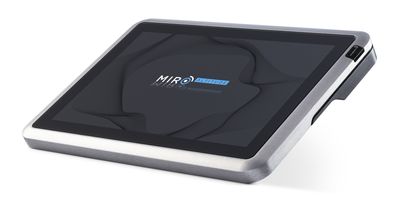

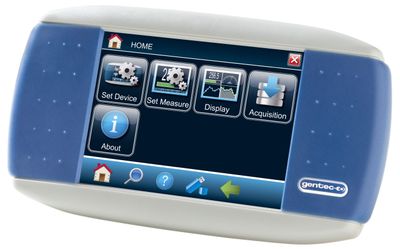

• Output and Display Compatibility: Compatible with a variety of single-channel display and PC interface devices for power and energy monitoring, supporting USB, Ethernet, and analog outputs.
• Documentation: Detailed product documentation and 2D CAD files are available for integration and planning purposes.

Applications and Usage

The UP19K-15S-H5-D0 is suitable for:

• Laboratory and industrial environments requiring accurate laser power and energy measurements.
• Systems where compact detector size is advantageous.
• Applications needing flexible cooling and mounting options.
