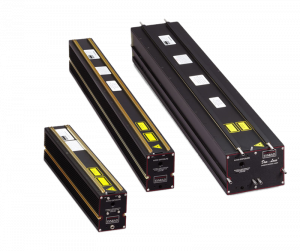

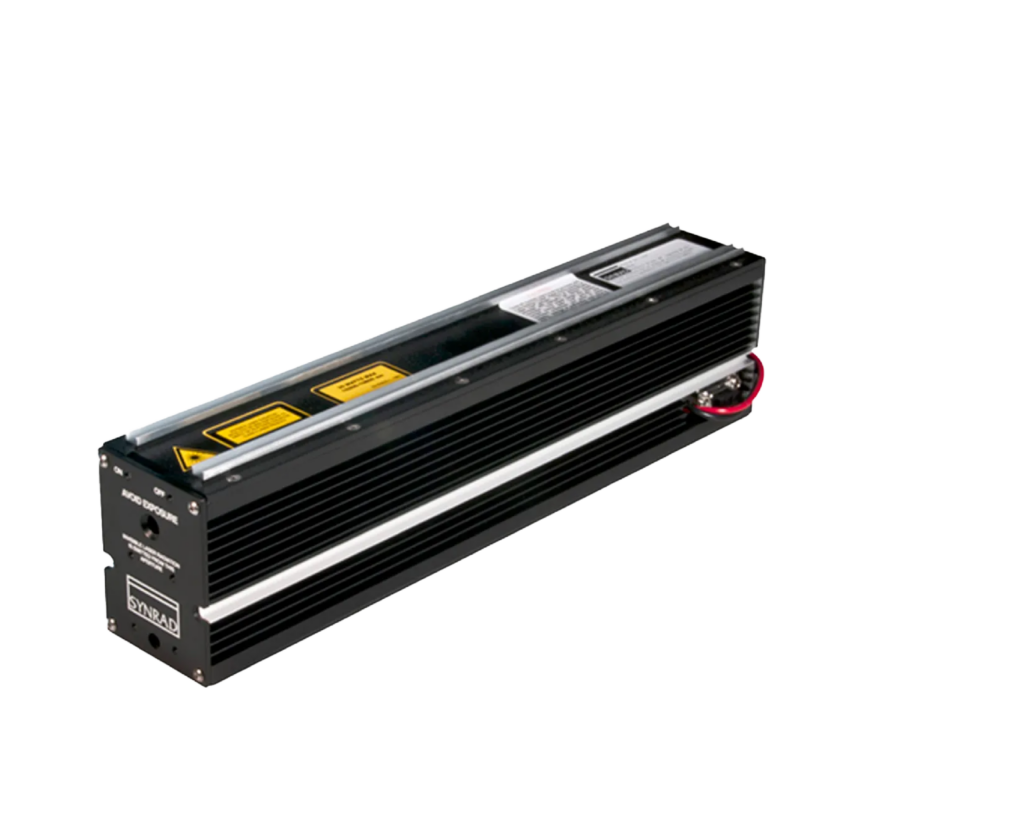

The 48 Series CO₂ Laser has been engineered for manufacturers requiring a reliable and easily integrated laser source for industrial applications. Built on Synrad’s proven all-metal sealed tube technology, the system delivers consistent laser performance with minimal maintenance requirements, making it suitable for continuous production environments.
Available with 9.3 μm and 10.6 μm wavelengths, the 48 Series provides flexibility across different material processing applications. Its compact footprint, lightweight construction and air or water cooling options allow straightforward integration into laser marking machines, coding systems, engraving equipment and small-format cutting platforms.
With more than 25 years of industrial use, the Synrad 48 Series has become a recognised solution for OEMs and manufacturers requiring dependable CO₂ laser technology for automated production systems.
| Technical Data | 48-1 (9.3 μm) | 48-1 (10.6 μm) |
|---|---|---|
| Output Power | > 8 Watts | > 10 Watts |
| Wavelength | 9.3 μm | 10.6 μm |
| Beam Quality (M²) | < 1.2 | < 1.2 |
| Power Stability | ± 15% | ± 10% |
| Beam Diameter | 3.5 mm | 3.5 mm |
| Operating Frequency | 0 – 20 kHz | 0 – 20 kHz |
| Duty Cycle Range | 0 – 100% | 0 – 100% |
| Cooling | Air, Water | Air, Water |
| Dimensions (L × W × H) |
Air cooled: 429 × 71 × 107 mm (16.9 × 2.8 × 4.2 in.) Water cooled: 460 × 71 × 107 mm (18.1 × 2.8 × 4.2 in.) |
Air cooled: 429 × 71 × 107 mm (16.9 × 2.8 × 4.2 in.) Water cooled: 460 × 71 × 107 mm (18.1 × 2.8 × 4.2 in.) |
| Weight | 4.1 kg (9.0 lbs.) | 4.1 kg (9.0 lbs.) |
Notes:
The Novanta Synrad 48 Series is designed for integration into industrial laser systems requiring reliable CO₂ laser performance. Its compact format and stable output make it ideal for manufacturers developing customised marking, engraving, coding and cutting solutions.
Typical applications include:
The 48 Series is particularly suited for automated production environments where consistent performance, low maintenance and long operating life are essential.
