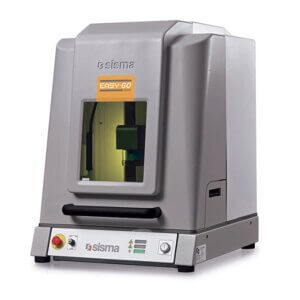

EASY GO series
EASY GO
Simple
Small-sized laser marking system, equipped with motorized Z axis, marking start button, and side openings.
Adaptable
Available with 20W and 30W laser sources. It can be integrated with SISMA accessories, like the spindle and the plate dragger.
Digitally advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
EASY GO OPEN
Simple
Small-sized laser marking system, equipped with motorized Z axis, marking start button, and side openings.
Adaptable
Available with 20W and 30W laser sources. It can be integrated with SISMA accessories, like the spindle and the plate dragger.
Digitally advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
Laser Marking
Technical Data | 200F | 300F | |||||||
Active material | Yb | Yb | |||||||
Average power | 20 W | 30 W | |||||||
Wavelength | 1064 – 1085 nm | 1064 – 1085 nm | |||||||
Working frequency | 20-60 kHz | 30-60 kHz | |||||||
Impulse duration | < 120 ns | < 120 ns | |||||||
Peak power | 8,5 kW | 8,5 kW | |||||||
Pulse energy | 1 mJ | 1 mJ | |||||||
Beam quality | <1,8 M² | <1,8 M² | |||||||
Z axes stroke | 290 mm | 290 mm | |||||||
Z axes precision | 0,05 mm | 0,05 mm | |||||||
Repeatability | 0,02 mm | 0,02 mm | |||||||
Max piece weight | 25 kg | 25 kg | |||||||
Power supply | 230 V ± 15% 50/60 Hz 1ph | 230 V ± 15% 50/60 Hz 1ph | |||||||
Cooling system | Air | Air | |||||||
Power absorption | 0,8 kW | 0,8 kW | |||||||
Dimensions (LxDxH) | 560 mm x 760 mm x 770 mm (1120 mm with open door)) | 560 mm x 760 mm x 770 mm (1120 mm with open door)) | |||||||
Weight | 85 kg | 85 kg |
