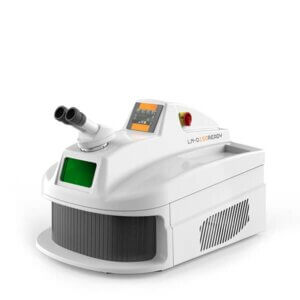

LM-D READY, manual laser welding system with easy access to the working chamber.
A precision-focused desktop laser welding system engineered for the highprecision processing of valuable metals. Featuring Smart Spot technology ensuring consistent welding outcomes with excellent depth of field and repeatable laser welding process. Its advanced cooling system enables dependable operation even in elevated temperature environments. Designed with operator comfort in mind, it boasts an ergonomic layout and minimal operating noise.
Applications:
| Technical data | LM-D READY150 | LM-D READY 180 | |||||||
| Source type | Nd: YAG (flash lamp) | Nd: YAG (flash lamp) | |||||||
| Wavelength | 1064 nm | 1064 nm | |||||||
| Average laser power | 60 W | 80 W | |||||||
| Pulse duration | 0,3-25 ms | 0,3-25 ms | |||||||
| Pulse frequency | 0-50 Hz | 0-50 Hz | |||||||
| Max peak power | 7,5 kW | 9 kW | |||||||
| Energy at max pulse duration | 150 J (lat 25 ms) | 180 J (lat 25 ms) | |||||||
| Spot diameter | 0,2÷2 mm (0,1 mm opt.) | 0,2÷2 mm (0,1 mm opt.) | |||||||
| Power supply | 230 V ±10% 50/60 Hz | 230 V ±10% 50/60 Hz | |||||||
| Dimensions | 567x744x512 mm | 567x744x512 m | |||||||
| Weight | 60 kg | 60 kg | |||||||
