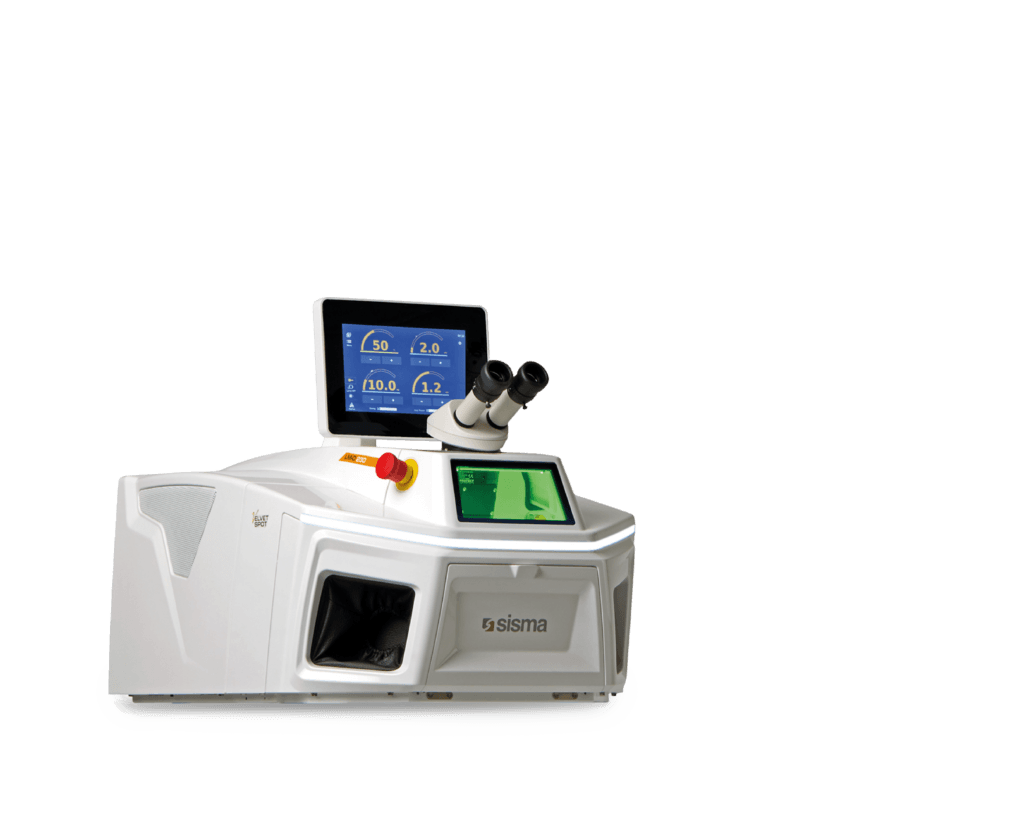

Sisma LM-D Series – Laser Welding System



The compact desktop LM-D manual welding system uses Smart Spot technology for a repeatable welding process ensuring a wide depth of field and a stable laser firing already from the first pulses.

The ergonomic design and low noise level ensure operator comfort and the ECO function switches the system to standby during idle times ensuring reduced consumption. The LM-D features USB and Ethernet connectivity for welding program download/upload as well as software and firmware updates. Offering high 150-210J maximum pulse energy, the LM-D machine can also be controlled remotely via smartphone, tablet or computer.

LM-D Vision



Stable
LM-D VISION incorporates the Smart Spot technology for a repeatable welding process ensuring a wide depth of field and a stable laser firing already from the first pulses.

Comfortable
The patented Syncro View system ensures a smooth and stress-free process view even during the welding process. The new ergonomic design and low noise level ensure total operator comfort. The ECO function deactivates specific system components during periods of inactivity thereby ensuring reduced consumption.

Connected
LM-D VISION features USB and Ethernet connectivity for welding recipes download/upload and software and firmware update. The LM-D VISION machine can also be controlled remotely via smartphone, tablet or computer.

LM-DT

LM-DT, manual laser welding system with microscope and integrated monitor for operator training.

LM-DT, a manual laser welding system equipped with a microscope and integrated monitor, ideal for operator training purposes.

LM-D integrates Smart Spot technology, ensuring consistent welding processes with a broad depth of field and stable laser firing from the initial pulses.

Featuring a new ergonomic design and minimal noise levels, LM-D prioritizes operator comfort. Its ECO function deactivates specific system components during idle periods, reducing overall energy consumption.

LM-D also offers USB and Ethernet connectivity for seamless downloading/uploading of welding recipes, as well as software and firmware updates.

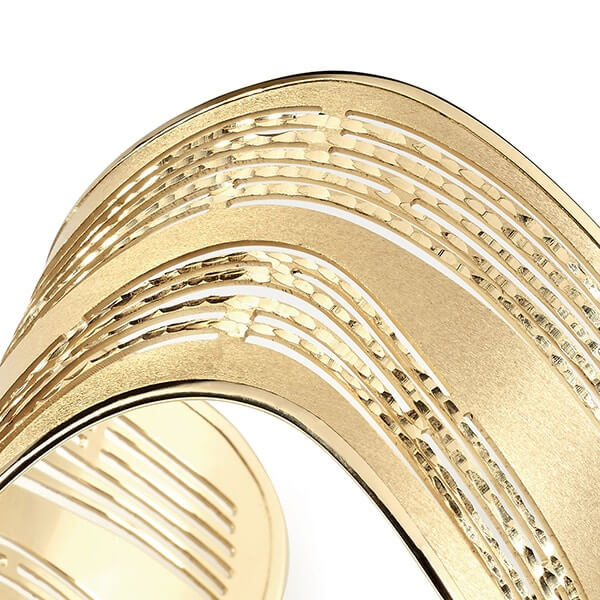

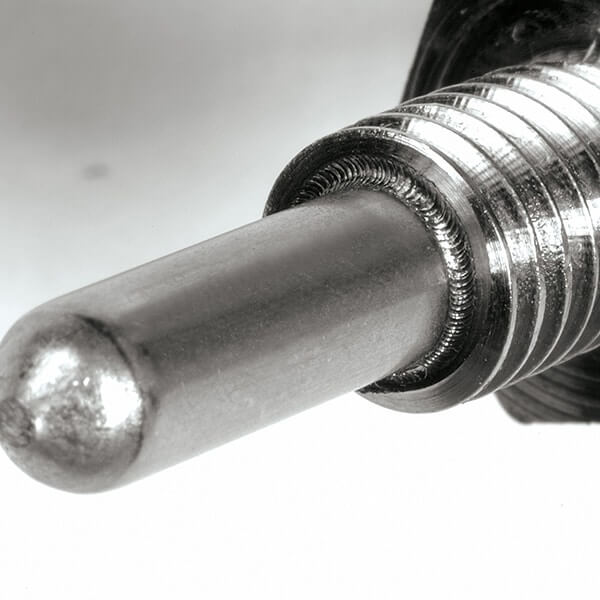

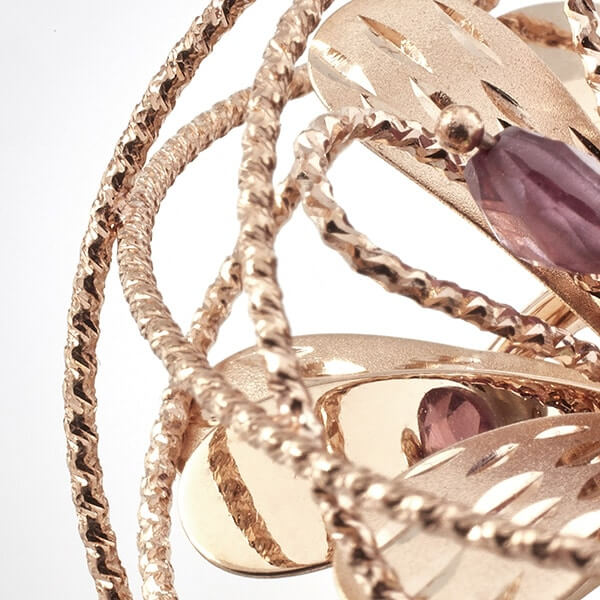

Applications:



LMD Ready

A precision-focused desktop laser welding system engineered for the highprecision processing of valuable metals. Featuring Smart Spot technology ensuring consistent welding outcomes with excellent depth of field and repeatable laser welding process. Its advanced cooling system enables dependable operation even in elevated temperature environments. Designed with operator comfort in mind, it boasts an ergonomic layout and minimal operating noise.

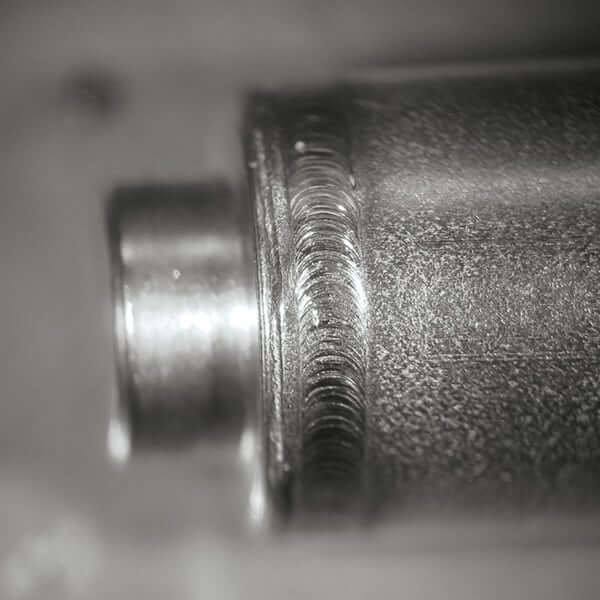

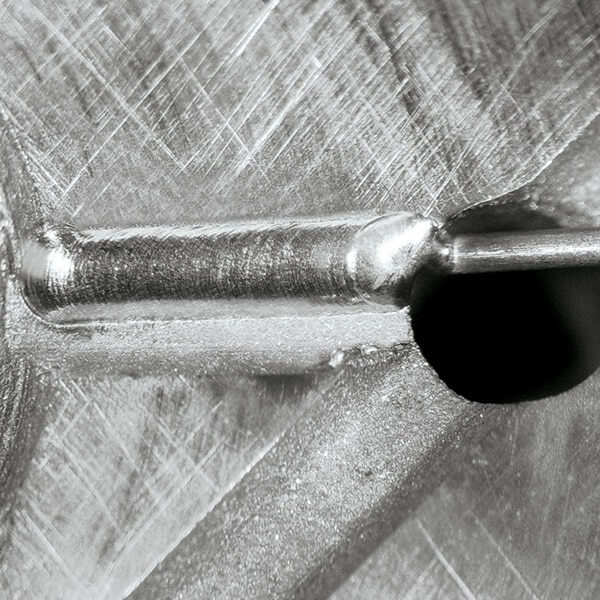

Applications:

Laser Systems

Model LM-D VISION 180 LM-D VISION 210
Source type Nd: YAG (flash lamp) Nd: YAG (flash lamp)
Wavelength 1064 nm 1064 nm
Average laser power (max) 80 W 85 W
Pulse duration 0,3-25 ms 0,3-25 ms
Pulse frequency 0-50 Hz 0-50 Hz
Max peak power 9 kW 10,5 kW
Max pulse energy at 20 ms 180 J 210 J
Spot diameter 0,2÷2 mm (0,1 mm opt.) 0,2÷2 mm (0,1 mm opt.)
Smart Spot V V
USB / Ethernet connectivity V V
Power supply 230 V ±10% 50/60 Hz 230 V ±10% 50/60 Hz
Dimensions 567x744x612 mm 567x744x612 mm
Weight 60 kg 60 kg



Technical Data LM-D T 180 LM-D T 210
Source type- Sorgente laser Nd: YAG (flash lamp) Nd: YAG (flash lamp)
Average laser power – Potenza media laser 80 W 85 W
Max peak power – Potenza di picco max 9 kW 10,5 kW
Energy at max pulse duration – Energia a durata impulso max 180 J 210 J
Wavelength – Lunghezza d’onda 1064 nm 1064 nm
Pulse duration – Durata impulso 0,3 ms – 20 ms 0,3 ms – 20 ms
Pulse frequency – Frequenza impulso up to 50 Hz up to 50 Hz
Spot diameter – Diametro spot 0,2 mm ÷ 2 mm (0,1 mm opt.) 0,2 mm ÷ 2 mm (0,1 mm opt.)
Smart Spot V V
Power supply – Alimentazione 230 V ±10% 50/60 Hz 230 V ±10% 50/60 Hz
Machine dimensions 567 x 744 x 612 mm 567 x 744 x 612 mm
Machine weight 60 kg 60 kg



Technical data LM-D READY150 LM-D READY 180
Source type Nd: YAG (flash lamp) Nd: YAG (flash lamp)
Wavelength 1064 nm 1064 nm
Average laser power 60 W 80 W
Pulse duration 0,3-25 ms 0,3-25 ms
Pulse frequency 0-50 Hz 0-50 Hz
Max peak power 7,5 kW 9 kW
Energy at max pulse duration 150 J (lat 25 ms) 180 J (lat 25 ms)
Spot diameter 0,2÷2 mm (0,1 mm opt.) 0,2÷2 mm (0,1 mm opt.)
Power supply 230 V ±10% 50/60 Hz 230 V ±10% 50/60 Hz
Dimensions 567x744x512 mm 567x744x512 m
Weight 60 kg 60 kg
