Sisma Logo 200F

Compact Laser Marking System

The LOGO 200F is a compact laser marking system designed for jewellery workshops, retailers, ateliers, and small manufacturing businesses that require professional-quality laser marking and laser engraving in a space-saving format.
Get a Quote

Compact Laser Marking System

Compact Size. Professional Results.

The LOGO 200F laser marking machine combines advanced fibre laser technology with an intuitive user experience, allowing businesses to produce high-quality permanent markings, personalised engravings, logos, serial numbers, and traceability codes from a compact workstation.

Professional Precision

Create crisp, permanent laser markings and engravings on precious and non-precious metals with outstanding accuracy, repeatability, and surface finish.

Easy for Every Operator

The guided software automatically selects the optimal laser parameters based on the chosen material and application, reducing setup time and making professional laser marking accessible to any operator.

Safe & Space Efficient

A fully enclosed Class 1 laser marking system with a space-saving retractable door, designed to maximise workshop efficiency while providing safe, convenient day-to-day operation.

Sisma Logo 200F

Key Features

A compact fibre laser marking system that delivers professional laser engraving and permanent marking for jewellery workshops, retailers, and small industrial businesses.
  • Compact Class 1 design with a retractable sliding door for safe operation in space-limited workshops.
  • Precision laser marking and engraving on gold, silver, steel, brass, aluminium, and other metals with exceptional detail and finish.
  • Intuitive software with a guided workflow and integrated material database, enabling fast setup and consistent results—even for first-time users.
small workshops laser marker

Sisma Logo 200F

ELEGANT, COMPACT AND TECHNOLOGICALLY ADVANCED

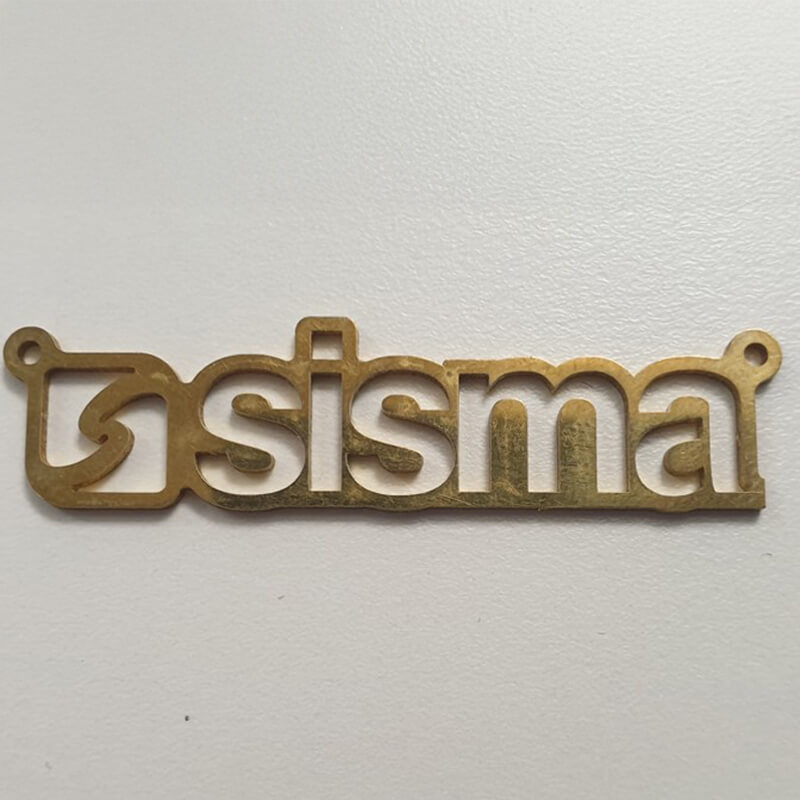

taglio-5

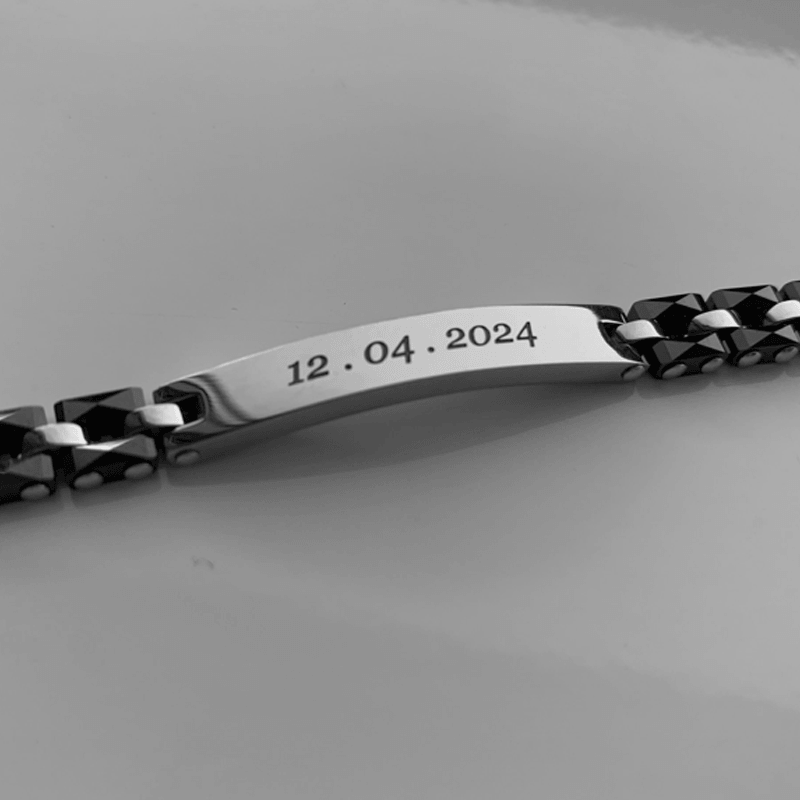

bracciale-5

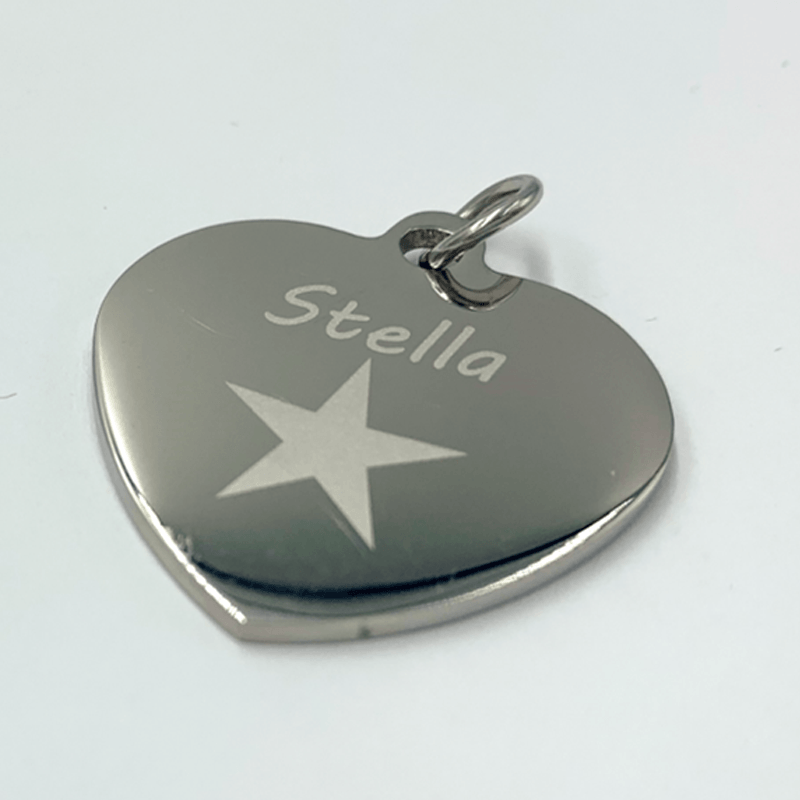

stella-5

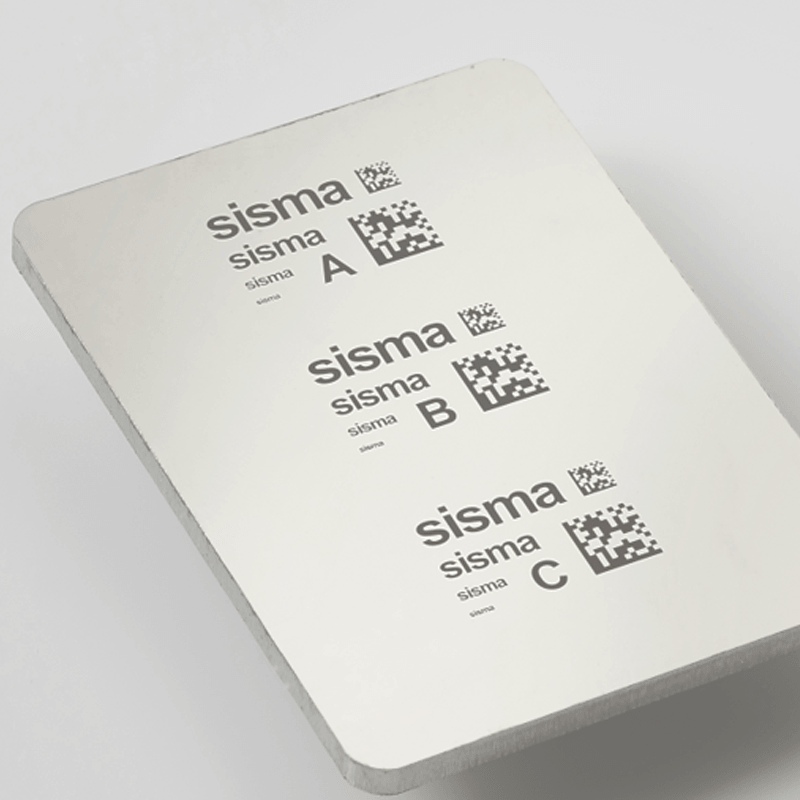

esempio-5
SART_application_3

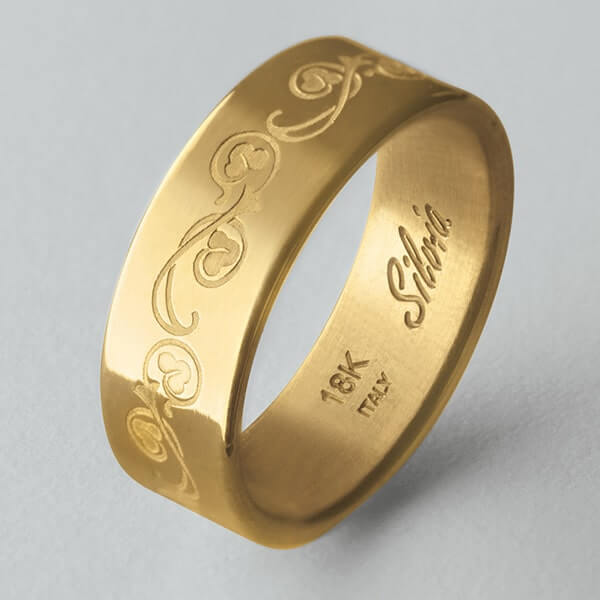

EASY_application-3
Laser source MOPA – 20 W
Wavelength 1064 nm
Peak power 14 kW
Max. pulse energy 0.8 mJ
Pulse duration 2 – 500 ns
Workable materials Steel, brass, aluminium, gold, silver
Max. marking volume 100 × 100 × 100 mm (F160)
Power supply 100/240 V AC – 50/60 Hz, 1ph, 150 W
Cooling system Air
PC connectivity RJ45 Ethernet cable
Software Developed by Sisma, compatible with Windows
Laser safety Class 1 – Safety interlocks
Dimensions (W × D × H) 485 × 582 × 694 mm
Weight 43.5 kg
  • Motorised spindle, for marking inside or outside rings.
  • Self-centring spindle.
  • XY micrometer positioner.
  • Fume suction unit.
Brochure

The SISMA LOGO 200F is a compact Class 1 fibre laser marking and engraving system designed for jewellery professionals, small workshops and industrial users who require precise, permanent marking in a space-saving solution. Its MOPA laser technology delivers high-quality engraving and finishing on both precious and non-precious metals, including gold, silver, steel, brass and aluminium.

Ideal for jewellery engraving applications, the LOGO 200F enables detailed personalisation of rings, bracelets and precious items, including logos, names, hallmarks, decorative patterns and identification marks. Dedicated accessories such as ring spindles and positioning tools help achieve accurate alignment and consistent results across different components.

For industrial laser marking applications, the system provides reliable solutions for serial numbers, product identification, traceability codes, branding and component marking. Its intuitive software with guided workflow and integrated material database simplifies setup, allowing operators to achieve professional results with minimal training.

The LOGO 200F supports multiple laser processes including precision engraving, marking, blackening, whitening, satin finishing and suitable cutting applications, making it a versatile solution for businesses requiring flexibility, accuracy and repeatable quality from a compact desktop laser marker.

You ask, we answer

We operate on application first basis. You send us your sample part and requirements, we test few of our systems and settings to find the best quality for best price.
The SISMA LOGO is designed to produce high-quality permanent markings on a wide range of metals, including gold, silver, brass, aluminium, steel and other alloys. It is ideal for jewellery personalisation, product branding, serial numbers and traceability applications.
Yes. The SISMA LOGO features intuitive software with a guided workflow and an integrated material database, making it easy for first-time users to achieve professional results. Its compact Class 1 design with a retractable sliding door also makes it an excellent choice for jewellery stores, ateliers and workshops where space is limited.
