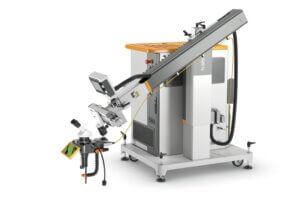

Sisma SWA Series

Mobile Laser Welding for Large Mould Repair

The SISMA SWA 150/300 is a semi-automatic laser welding system developed specifically for the maintenance and repair of large industrial moulds, dies and heavy tooling. Its mobile wheeled design, articulated welding head and advanced software allow operators to repair components that are too large or heavy to move to a conventional laser welding workstation.
Get a Quote

Mobile Laser Welding for Large Mould Repair

Designed for Large Mould Repair

The SISMA SWA Series combines the precision of Nd:YAG laser welding with the flexibility of a mobile, semi-automatic workstation. Available in 150 W and 300 W configurations, it features a robust wheeled chassis, articulated welding arm and fibre-optic beam delivery, enabling accurate repairs on large moulds and engineering components directly at the workpiece. Unlike traditional bench-mounted laser welders, the SWA is designed for applications where moulds are too large or heavy to reposition. The advanced software allows operators to create and save welding paths, including arcs, circles and predefined filling routines, while Pulse Shaping, Smart Pulse and excellent beam quality ensure consistent, high-quality welds with minimal heat distortion. Its robust construction and ergonomic controls make it ideal for continuous industrial use in demanding manufacturing environments.

Mobile System

Repair large moulds directly without moving heavy components.

Semi-Automatic

Create, save and repeat complex welding paths with ease.

Industrial Precision

Consistent laser welds with excellent metallurgical quality.

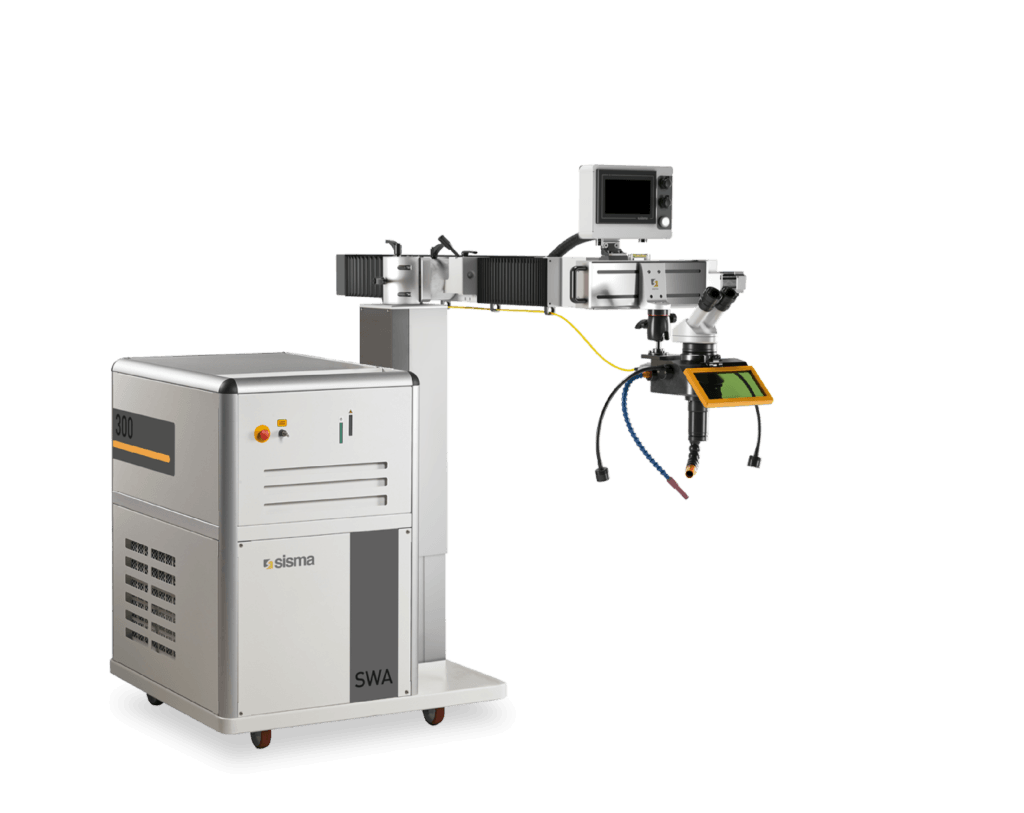

Sisma SWA Series

Key Features

The SWA Series provides precision laser welding where accessibility and mobility are just as important as welding quality.
  • Available in 150 W and 300 W Nd:YAG laser configurations.
  • Mobile wheeled design for repairing large moulds and heavy tooling.
  • Advanced welding software with Pulse Shaping, Smart Pulse and programmable welding paths.

Sisma SWA Series

Laser repair of large industrial moulds

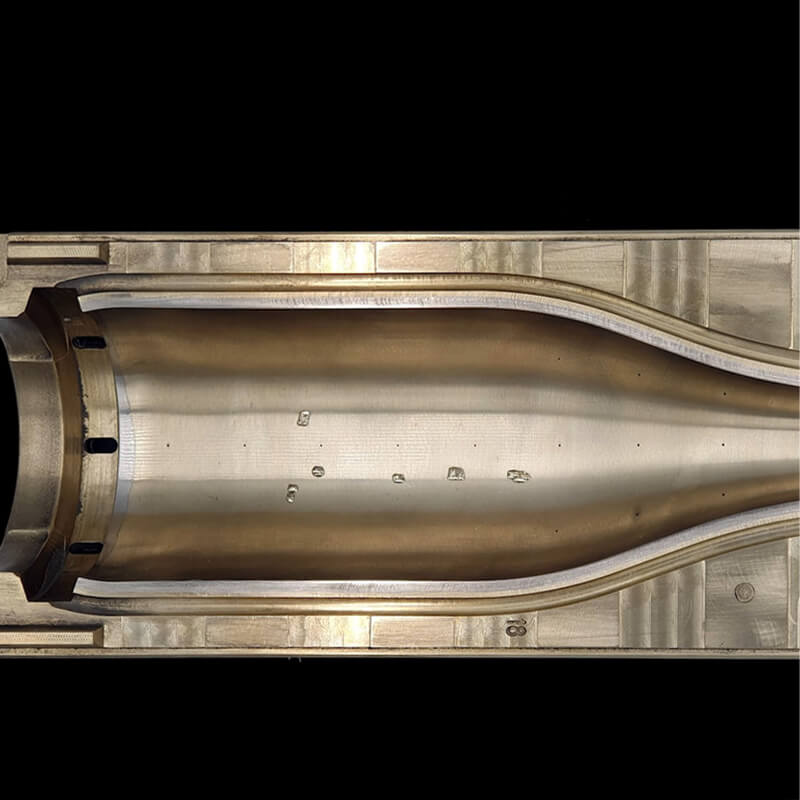

swa mould repair

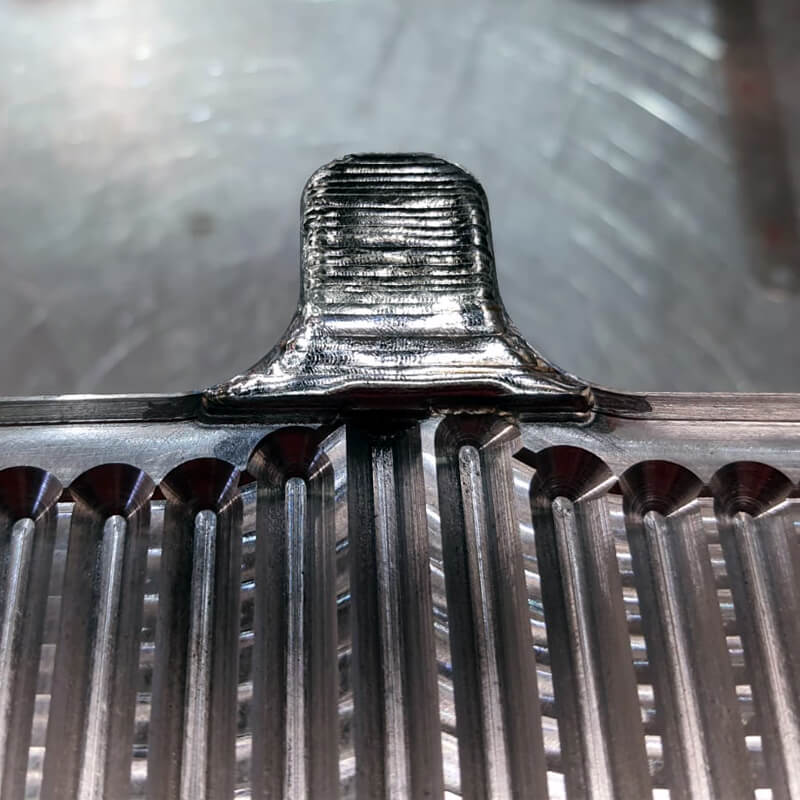

SWA laser application

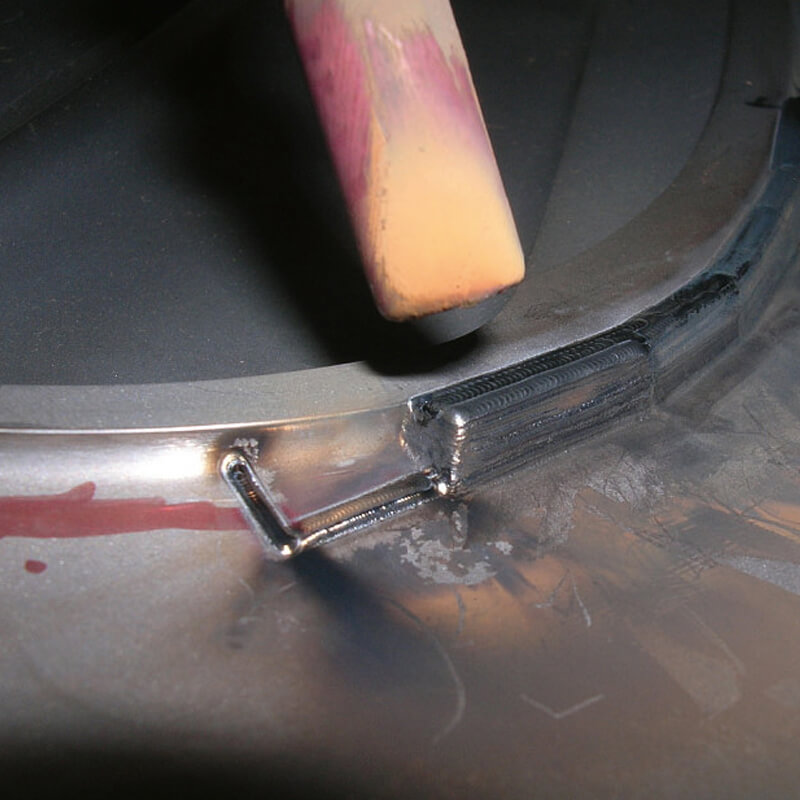

SWA Industrial wleding application

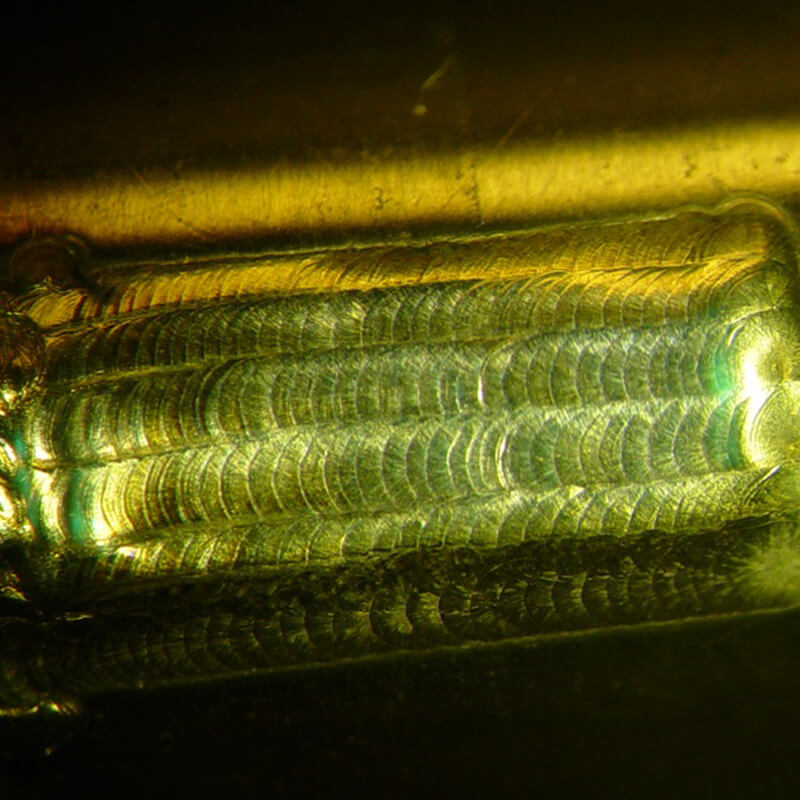

SWA welding
Technical Data SWA 150 SWA 300
Laser Source Nd:YAG (Flash Lamp) Nd:YAG (Flash Lamp)
Wavelength 1064 nm 1064 nm
Average Laser Power 150 W 300 W
Peak Power 10.5 kW 12 kW
Maximum Pulse Energy 75 J 150 J
Pulse Duration 0.3–25 ms 0.3–25 ms
Laser Spot Diameter 0.6–2 mm 0.6–2 mm
Power Supply (230 V) 230 V, 50/60 Hz, 1 Phase – 1 kW 230 V, 50/60 Hz, 1 Phase – 1 kW
Power Supply (400 V) 400 V, 50/60 Hz, 3 Phase – 3.5 kW 400 V, 50/60 Hz, 3 Phase – 8 kW
X-Axis Travel 300 mm 300 mm
Y-Axis Travel 150 mm 150 mm
Z-Axis Travel 500 mm 500 mm
Movement Speed 0.1–30 mm/s 0.1–30 mm/s
Vision System Leica Binocular Microscope Leica Binocular Microscope
Cooling System Air / Water Air / Water
Machine Dimensions (W × D × H) 1260 × 1980 × 1650 mm (without articulated joint) 1260 × 1980 × 1650 mm (without articulated joint)
Machine Weight 270 kg 310 kg
  • Motorised Spindle – Enables precise welding of cylindrical components with smooth and controlled rotation.
  • Adjustable Optics Group – Allows the laser optics to be positioned for optimal access and welding accuracy.
  • Hemispherical Stand with Magnetic Base – Provides stable, flexible positioning for precise laser welding operations.
  • Fume Extraction Unit – Removes welding fumes from the work area, improving visibility and maintaining a cleaner workspace.
  • Foot Pedal Control – Hands-free operation for laser firing and shielding gas flow control, improving productivity and operator comfort.
  • Ergomodule – Adjusts the microscope height to create a comfortable, ergonomic working position during extended use.
  • LED Illuminator – Enhances visibility of the workpiece for greater precision during laser welding.
  • Camera Kit – Provides a live view of the welding process for improved monitoring, positioning and documentation.
Brochure

The SISMA SWA 150/300 is engineered for industrial mould repair, die maintenance and heavy tooling refurbishment, making it ideal for manufacturers working with large components that cannot easily be transported to a fixed welding station. Its mobile design and articulated welding head allow operators to access difficult areas while maintaining exceptional welding precision.

Typical applications include injection mould repair, die-casting tools, stamping dies, plastic mould maintenance, precision engineering components and large industrial tooling. The semi-automatic welding functions improve consistency, reduce repair times and help extend the service life of expensive production tools.

You ask, we answer

The SISMA SWA 150/300 is designed for the repair and maintenance of large industrial moulds, dies and heavy tooling. Its mobile design allows operators to repair components that are difficult or impossible to move to a conventional welding station.
The SWA provides high-quality laser welding on tool steels, stainless steels, copper alloys, aluminium alloys and other compatible industrial metals, delivering strong, precise repairs with minimal heat input.
The SWT is a fixed workstation designed for medium-sized moulds, while the SWA is a mobile semi-automatic system intended for larger, heavier moulds that require greater reach and flexibility. The SWA also includes programmable welding paths for improved productivity.
