SMARK Series
SMARK CO2
Versatile

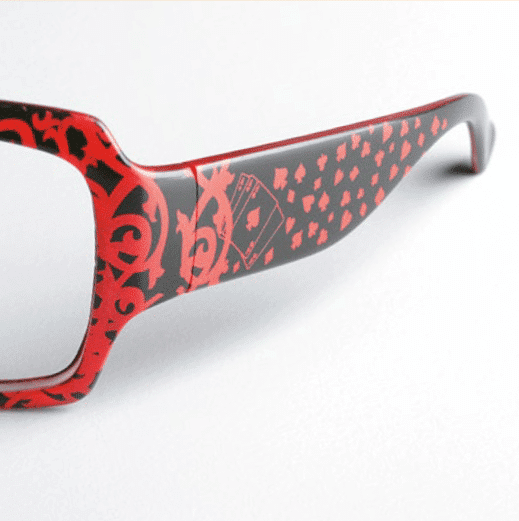

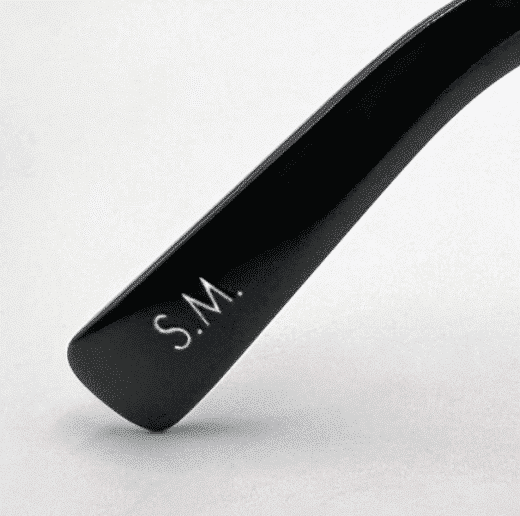

The advanced features of the 20W CO2 laser source, complete with high performance galvanometric head, allow to carry out engraving, marking and cutting operations in line with the highest technical standards. SMARK CO2 can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
SMARK CO2 is a Class 1 system with Ple performance level [certified protection window and double laser safety shutter].
Practical
The 490 mm x 350 mm working chamber is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.

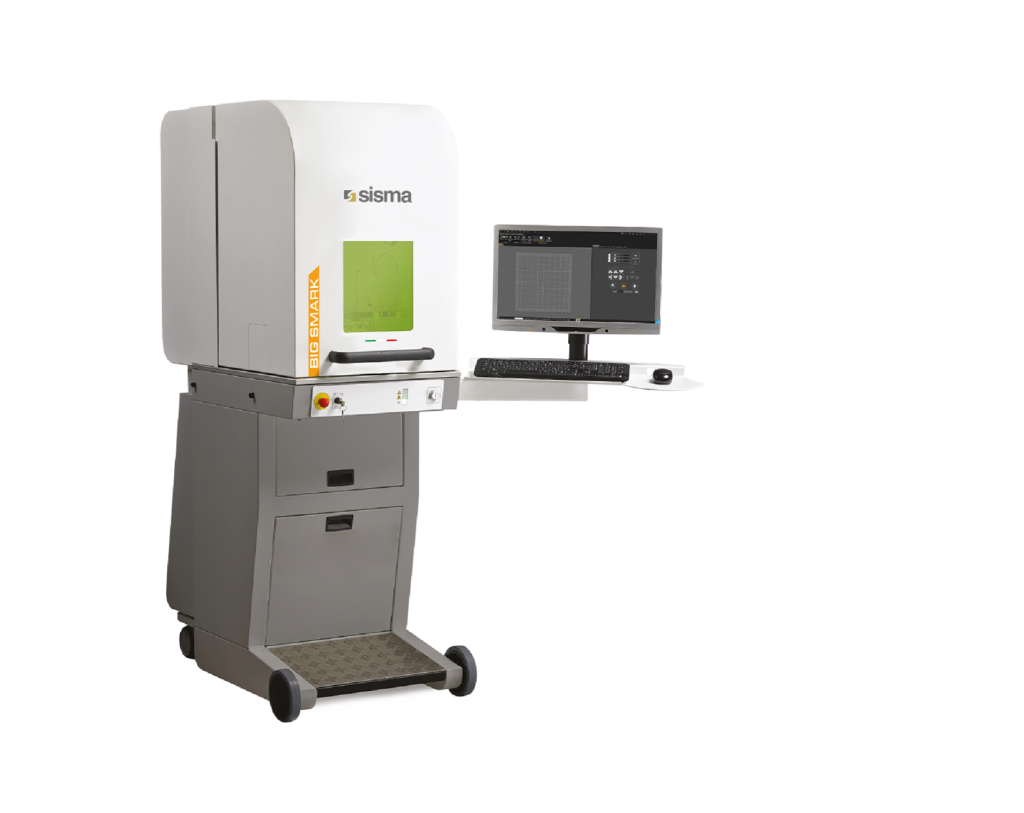

BIG SMAKR
Versatile
The advanced features of the laser source allow to carry out engraving, marking and cutting operations in line with the highest technical standards. BIG SMARK can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
Practical
The 500 mm x 500 mm working chamber (maximum piece height 530 mm with F100 focal length) is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
BIG SMARKY
Versatile
The advanced features of the laser source allow to carry out engraving, marking and cutting operations in line with the highest technical standards. Big Smarky can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.
Practical
The 500 mm x 500 mm working chamber (maximum piece height 530 mm with F100 focal length) is open on three sides to facilitate access.
Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.
Laser Marking
SMARK CO2
aser source | CO2 | ||||||||
Wavelength | 10600 nm | ||||||||
Average laser power | 20W | ||||||||
Pulse frequency | 1 200kHZ | ||||||||
Beam quality | < 1,2 | ||||||||
Laser spot diameter | 200 µm | ||||||||
Z azis stroke | 332 mm max piece height 332 mm | ||||||||
Guide laser | Classe 2 red laser diode | ||||||||
Working temperature | 10°C 35°C non condensing | ||||||||
Working chamber | 490 mm x 350 mm x h260 mm | ||||||||
Power supply | 230 V ± 15% 50/60 Hz 1pH 0,8 kW | ||||||||
Dimensions | 560 mm x 1156 mm x h981 mm with open door h1501 mm | ||||||||
Weight | 150 kg |
BIG SMARK
Technical data | 200F EP | 500F EP | 700F EP | 3000F | 7000F | 1000F EP | |||
Active material | Yb | Yb | Yb | Yb | Yb | Yb | |||
Average power | 1059 – 1064 nm | 1059 – 1064 nm | 1059 – 1064 nm | 1080 – 1095 nm | 1080 – 1095 nm | 1059 – 1064 nm | |||
Wave length | 20 W | 50 W | 70 W | 30 W | 55 W | 100 W | |||
Working frequency | 1÷1000 kHz | 1÷1000 kHz | 1÷1000 kHz | 30÷80 kHz | 70÷140 kHz | 1÷4166 kHz | |||
Impulse duration | 6-500 ns | 6-500 ns | 9-500 ns | 50-200 ns | 50-200 ns | 6-2020 ns | |||
Peak power | > 10 kW | > 10 kW | > 10 kW | 8,5 kW | > 10 kW | 14 kW | |||
Pulse energy | 0,03 – 1 mJ | 0,03 – 1 mJ | 0,03 – 1 mJ | 1 mJ | 0,8 mJ | 0,03 – 1,3 mJ | |||
Beam quality | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 | |||
Cooling system | Air | Air | Air | Air | Air | Air | |||
Z axes stroke | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm | |||
Z axes precision | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | |||
Repeatability | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | 0,02 mm | |||
Max piece weight | 50 kg | 50 kg | 50 kg | 50 kg | 50 kg | 50 kg | |||
Power supply | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | 230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres | |||
Power absorption | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | |||
Dimensions (LxDxH) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | 655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door) | |||
Weight | 240 kg | 240 kg | 240 kg | 240 kg | 240 kg | 240 kg
|
BIG SMARKY
Model | 100 | 200F | 200F EP | 300F | 400F | 500F | 700F | GREEN | |
Laser source | Nd:YAG | Yb | Yb | Yb | Yb | Yb | Yb | Nd:YV04 | |
Wave length | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 532 nm | |
Average laser power | 10 W | 20 W | 20 W | 30 W | 40 W | 50 W | 70 W | 10 W | |
Pulse frequency | 1÷200 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | 1÷1000 kHz | 1÷500 kHz | 1÷500 kHz | 1÷300 kHz | |
Pulse duration | 30 ns | 260/40 ns | 3-500 ns | 260/40 ns | 10-240 ns | 250/40 ns | 260/40 ns | 30 ns | |
Max pulse energy | 0,5 mJ | 1/0,21 mJ | 0,03-1 mJ | 1/0,21 mJ | 0,16 – 1,33 mJ | 1/0,21 mJ | 1/0,21 mJ | 0,25 mJ | |
Beam quality | ≤ 1,8 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 3,5 M2 | ≤ 1,6 M2 | ≤ 1,6 M2 | ≤ 1,2 M2 | |
Laser spot diameter | 25 μm | 20 μm | 20 μm | 20 μm | 40 μm | 20 μm | 20 μm | 12 μm | |
Z axis stroke | 400 mm | 2000 mm/s | |||||||
Guide laser | Class 2M Red Laser Diode; λ=650 nm; 2 mW | F100, F160 | |||||||
Working temperature | 10°C to 35°C – non condensing | ||||||||
Working chamber | 500 x 500 x 380 mm | ||||||||
Power supply | 230 V ± 15% 50/60 Hz 1ph 0,8 kW | ||||||||
Dimensions (WxDxH) | 556 x 943 x h 953 mm (h 1655 mm with open door) | Forced-air cooling | |||||||
Weight | 125 kg |
