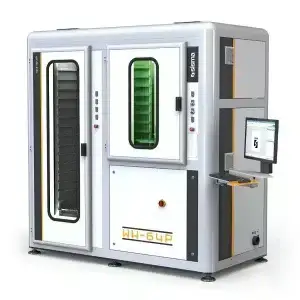

WH-64-P, laser marking station with 64-pallet automatic storage

Productive and flexible
64 customizable pallets on 4 columns: different items can be processed on each pallet, with loading/unloading option even during operation.

WH-64-P allows to perform unattended work cycles with self-shutdown at completion (Energy Saver), remote monitoring and statistical reports of the processing performed.

Integrated coaxial vision system (CVS) for precise centering and automatic recognition of the pieces, control interface that allows the processing management for each pallet (even during operation).

Laser sources20 – 30 – 50W
Pallet dimensions300 x 300 x 13 mm
Max piece height40mm / 150mm (removing odd-numbered pallets)
Dedicated softwareIncluded
Coaxial Vision System & Pattern Matching softwareIncluded
Max power absorbed1,5kW
Power supply230V±15% 50/60 Hz 1ph
Dimensions216 x 112 x 216 cm
