Modo, universal systems for laser processes
The MODO system offers an unprecedented range of configuration and is customizable according to specific needs.

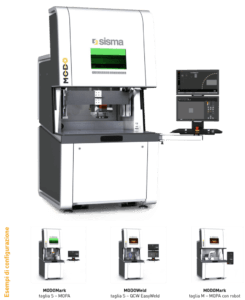

Sizes The best ratio between overall machine dimensions and working chamber dimensions.
Size S: 980 mm x 1460 mm x 2050 mm Worktop: 690 x 770 mm Size M: 1300 mm x 1460 mm x 2050 mm Worktop: 1000 x 770 mm
Available processes & sources
MODO MARK: 2D & 3D Marking – Remote Cutting – Engraving CO2 – MOPA – UV
MODO WELD: UV Remote Welding – Easy Welding Fiber QCW – Fiber CW
MODO WELD TORCH: Torch laser welding system
MODO WELD REMOTE: Remote laser welding system
Axes MODO can be configured in the following variants: cartesian axes with free choice from 1 to 5 axes; with industrial anthropomorphic robot.
Access to the working chamber Access to the working chamber on three sides with a maximum opening of 580 mm. The door is available: manual version locked during the process; automatic electric with safety bumper.
User interface
Programming console with single or double monitor Ergonomic solution for standing or semi-sitting positions that allows the creation of projects directly on the machine. You can add a second monitor to expand the programming area.
Touch Console Compact touch-screen to manage the entire system in a simple way using ready-made projects or projects that require minimal precise calibrations.
Virtual Window Screen that emulates the internal viewing window with elements of augmented reality that guarantee a high level of safety regardless of the power of the installed laser.
Laser Marking
| echnical data | |
| Welding laser sources | Fiber 2000 CW |
| Axes stroke / Working plane area | Max. 600 x 470 x 235 h mm (Size M) |
| Positioning repeatability | Up to 10 μm |
| Available control panels | Standard / Plus / Touch |
| Air supply | Dual, independent and adjustable by program |
| Process gas | Self-adjusting |
| Max. dimensions (L x P x A) | Size S: 980 x 1980 x h 2060 mm / Size M: 1300 x 1980 x h 2060 mm |
| Weight | Size S: 1100 kg / Size M: 1300 Kg |
Size:
Size S: 980 mm x 1460 mm x 2050 mm Worktop: 690 x 770 mm
Size M: 1300 mm x 1460 mm x 2050 mm Worktop: 1000 x 770 mm
Marking

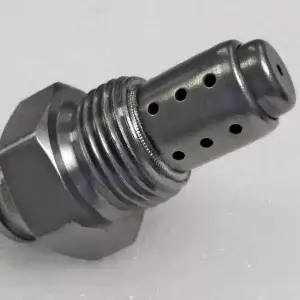

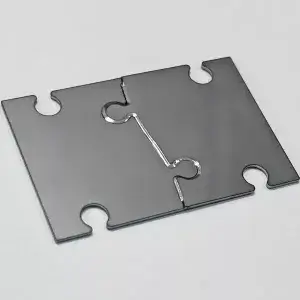

Welding

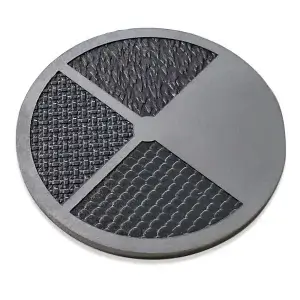

Engraving
