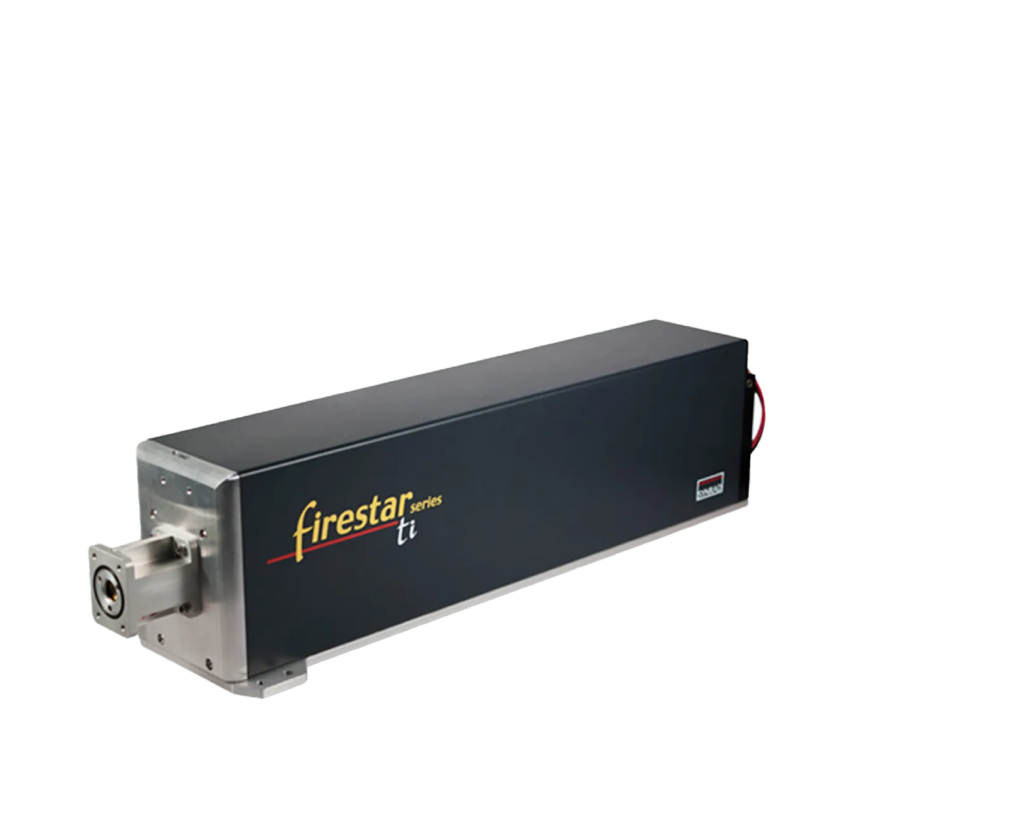

The Synrad ti Series has been developed for manufacturers requiring increased laser power without moving to large industrial laser platforms. Available in 60W, 80W and 100W configurations, these RF-excited sealed CO₂ lasers deliver outstanding beam quality and stable output for precision industrial processing.
With support for multiple wavelengths, air or water cooling configurations and high-speed modulation, the ti Series offers exceptional flexibility across a wide range of manufacturing applications. Whether integrated into laser cutting systems, engraving machines, coding equipment or automated production lines, the ti Series provides consistent performance and long-term reliability.
Designed specifically for OEM integration, the laser features a compact mechanical design, industry-standard interfaces and advanced electronic control, allowing machine builders to create highly productive laser processing systems with minimal maintenance requirements.
| Technical Data | ti 60 | ti 80 | ti 100 | ti High Stability | ti 100P |
|---|---|---|---|---|---|
| Output Power | > 60 Watts | > 80 Watts | > 100 Watts | > 60 Watts > 80 Watts > 100 Watts |
> 100 Watts (Average) > 300 Watts (Pulse) |
| Wavelength | 9.3 μm 10.2 μm 10.6 μm |
9.3 μm 10.2 μm 10.6 μm |
9.3 μm 10.2 μm 10.6 μm |
10.6 μm | 9.3 μm 10.2 μm 10.6 μm |
| Beam Quality (M²) | < 1.2 | < 1.2 | < 1.2 | < 1.2 | < 1.2 |
| Power Stability (Cold Start) | ± 7% | ± 7% | ± 7% | ± 4% (± 2% guaranteed after 3 mins) |
± 7% |
| Beam Diameter | 2.0 mm ± 0.3 mm | 2.0 mm ± 0.3 mm | 2.0 mm ± 0.3 mm | 2.0 mm ± 0.3 mm | 6.5 mm ± 2.0 mm (with 3× beam expander) |
| Operating Frequency | 0 – 160 kHz | 0 – 160 kHz | 0 – 160 kHz | 0 – 160 kHz | 0 – 100 kHz |
| Duty Cycle Range | 0 – 100% | 0 – 100% | 0 – 100% | 0 – 100% | < 50% |
| Cooling | Air, Fan, Water | Air, Fan, Water | Fan, Water | Water | Water |
| Dimensions (Air Model) | 571 × 158 × 148 mm (22.5 × 6.2 × 5.8 in.) |
571 × 158 × 148 mm (22.5 × 6.2 × 5.8 in.) |
n/a | n/a | n/a |
| Dimensions (Fan Model) | 571 × 196 × 150 mm (22.5 × 7.7 × 5.9 in.) |
571 × 196 × 150 mm (22.5 × 7.7 × 5.9 in.) |
571 × 196 × 150 mm (22.5 × 7.7 × 5.9 in.) |
n/a | n/a |
| Dimensions (Water Model) | 584 × 143 × 150 mm (23 × 5.6 × 5.9 in.) |
584 × 143 × 150 mm (23 × 5.6 × 5.9 in.) |
584 × 143 × 150 mm (23 × 5.6 × 5.9 in.) |
544 × 104 × 150 mm (21.4 × 4.1 × 5.9 in.) |
633 × 142 × 150 mm (24.9 × 5.6 × 5.9 in.) |
| Weight (Air Model) | 11.6 kg (25.5 lbs.) | 11.6 kg (25.5 lbs.) | n/a | n/a | n/a |
| Weight (Fan Model) | 13.1 kg (28.9 lbs.) | 13.1 kg (28.9 lbs.) | 14.6 kg (32.1 lbs.) | n/a | n/a |
| Weight (Water Model) | 11.9 kg (26.2 lbs.) | 11.9 kg (26.2 lbs.) | 11.9 kg (26.2 lbs.) | 19 kg (42 lbs.) | 12.1 kg (26.7 lbs.) |
Notes:
The Synrad ti Series is designed for manufacturers requiring reliable medium-power CO₂ laser performance across a broad range of industrial processing applications.
Typical applications include:
