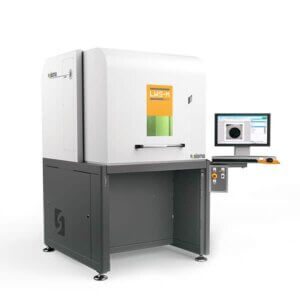

LWS-M, 3-axis laser marking station with removable and height adjustable working plane.

The LWS-M plus version is available with a laser source that can be moved automatically along the X and Z axes and manually along the Y axis.

The gantry structure, open on three sides, combined with the possibility of moving or removing the working plane, makes it possible to process heavy and large pieces. LWS systems can be customized to meet every need (for example automatic processes).

The LWS systems can be fitted with many standard features such as the rotary marking axis and marking head for marking angle adjustment and the coaxial vision system (CVS) ideal for automatic and high precision processes.

Sturdy and intuitive
The sturdy structure, made with special care to technical and aesthetic details, guarantees repeatability of results over time. The ergonomic design, combined with the software developed by SISMA, make LWS systems easy to use even for complex processes.

Technical dataLWS – MLWS – M Plus
Y axis stroke480 mm ( 550 mm cl. IV) – manual480 mm – motorized
Z axis stroke410 mm, motorized
Working planeFixed410 mm, motorized
Door openingManual counterweightedManual counterweighted
Available laser source20W – 30W- 50W20W – 30W- 50W
Power supply230 V ± 15% 50/60 Hz – 1 kW230 V ± 15% 50/60 Hz – 1 kW
Dimensions500 kg1400 mm x 1414 mm x 2002 mm (2585 mm open door)
Weight500 kg
